Frequncies

This page is under construction. I am summarizing my recent results (very slowly) here, especially on TV frequencies.

Each frequencies may have error about a few Hz. The 0.1Hz digit is for reference only, not trusted.

MHz: 33 40 45 48 49 50 55 59 65 77 85 91 93 168 175

My QTH

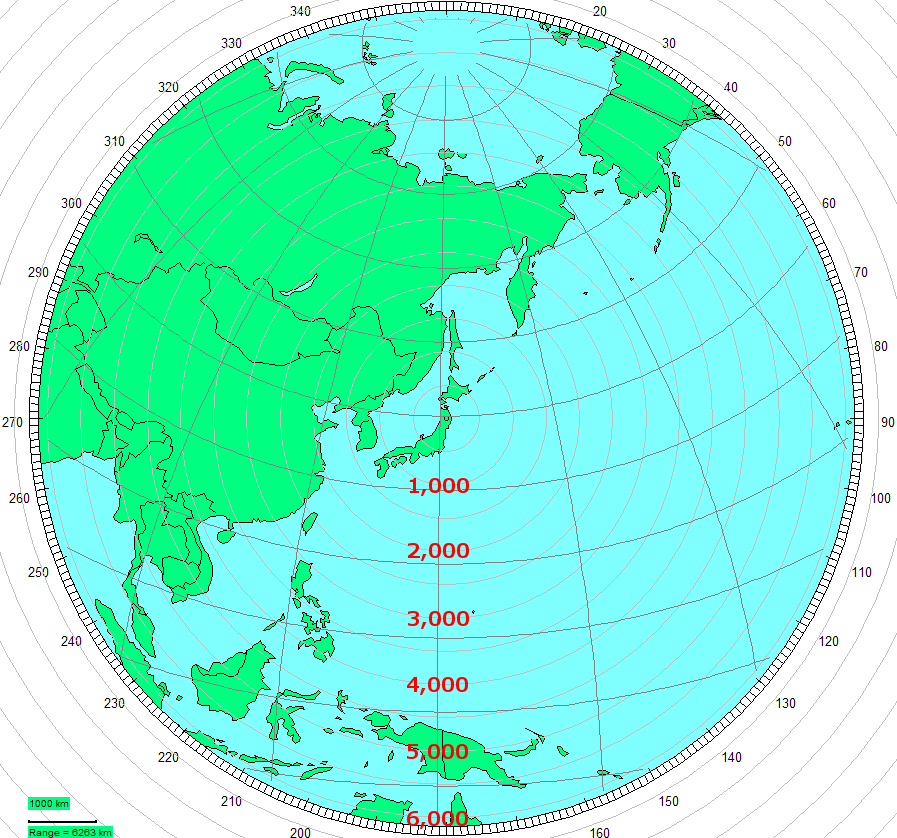

JE7IDA is located at 39N43 141E9. The map below shows 3-hop Es area from here.

33.00MHz A Data Signal

A digital signal on 33.00MHz has been received in Australia and New Zealand when TEP opens. I can receive it from the morning to the evening weakly.

Todd Emslie had found a similar signal on 33.375MHz so I googled with a search word '33.375mhz'. The result was 17, 16 of them were about a Chinese law for the communications with fishing boats (An English translation of the law).

This law defines that 33.000MHz is a control channel in ASK; 33.375 and 33.425MHz are non-emergency call channels in MSK.

As many people have thought, Japan also may have some digital TX on 33.000MHz. I have to look up on the telecom's license search but with the old search system I had to search hundreds times so I could not. From April 2011, with a new search system I have to search only 47 times so I will do it soon.

Result of the search on 24 Nov 2011: I searched with the condition '32-34MHz' for 47 Japanese prefectures. The result was one item: '33.47MHz N0N 5W portable for prop test. Telecom Engineering Center'. Also I think JSDF is using these frequencies.

40.69MHz and Alaskan A2

40.6896MHz has been an excellent indicator for Alaska. This signal comes from AMBCS, ... Anchorage is at 5,134km in QTF38 from here.

I received 40.689 633 5 on 05 JUN 2011. At 0730z S5, 0746z S5, 0805z S6, (took a dinner,) and at 0902z nil. Received audio:

Here is a reception list of 40.69 from 2002. The propagation modes were F2 until 2002, Es since 2006. Why I could not receive it with Es until 2006?

------------------------------------------------------------
YYMMDD  JST-    MHz---------    Remarks
------------------------------------------------------------
01                              heard many times
020101  0923    40.69           S9+20
020102  0845    40.69           S9+
        0920    40.69           S9+20
020103  0835    40.69           S7
020104  09      40.69           weak
020112  1013    40.69           S9+20
020113  0935    40.69           S3
020114  0841    40.69           S8
020116  0906    40.69           S8
020120  0955    40.69           S8
020122  0904    40.69           S8
020123  ?       40.69           S9+
020124  08      40.69           S8
020125  0852    40.69           S9+
020126  ?       40.69           S7
020127  1356    40.69           S3
020128  0833    40.69           S5
020201  1222    40.69           S7
020210  1016    40.69           weak
020215  1023    40.69           S7
020216  0848    40.69           S4
020217  ?       40.69           S6
020225  ?       40.69           S8
020318  1242    40.69           S8
020319  1202    40.69           S5
020328  0731    40.69           S1
021023  0758    40.69           S7
03                              nil
04                              nil
05                              nil
060530  0837    40.69           weak, more than 2 hours
060611  1651    40.69           weak, in and out for 3 hours
060617  1342    40.69           weak
060624  1819    40.69           S0
070526  1301    40.69           S1
070627  1627    40.69           S0 for 2 hours
080523  1731    40.69           S1
080524  1604    40.69           weak
080610  1606    40.689 633 0    S1
        1652    40.689 630 5
080611  0749    40.689 628 7    vy weak
080613  1602    40.689 631 8A   vy weak
080614  0831    40.689 625 9    S1 f/o after 11
080617  1705    40.689 630 0    S1
080629  0858    40.69           weak
080723  1506    40.689 619 1    S0
090507  0808    40.69           S0 f/o before 10
090620  0745    40.689 629 5    weak
10                              nil
110605  1630    40.689 633 5    S6
------------------------------------------------------------

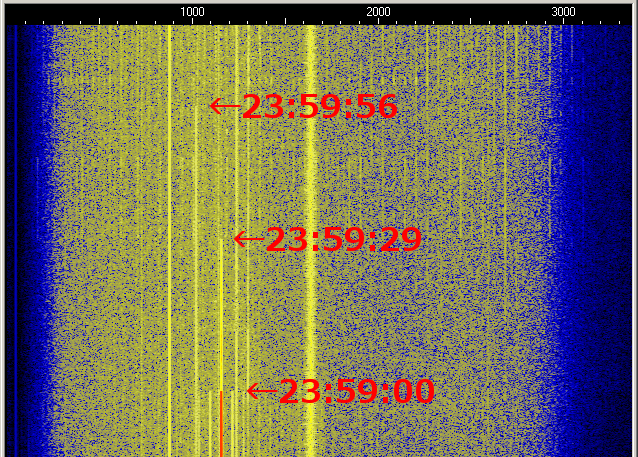

Until ASO (analogue switch off) in USA, 55.23997-55.24000 Anchorage had been received often with 40.69, and sometimes 55.26000-55.26006 Fairbanks.

Here is a reception list of Alaskan A2 from 2000. I could not receive them until 2006 (same as 40.69), why? Also, why I could not receive them with F2?

------------------------------------------------------------
YYMMDD  JST-    MHz---------    Remarks
------------------------------------------------------------
; Anchorage KTUU-TV 100/10kW
060529  1536    55.239 994 9
060530  0738    55.239 994A
        1033    55.239 993 7    weak
060611  1657    55.239 988 5    S0 60Hz
060617  1339    55.239 989 9
060624  1819    55.239 986 4    weak
070604  1355    55.239 971 7    S0
        1407    55.239 973 0    weak
070627  1632    55.239 990 4    S0
080521  1406    55.240 005 1    vy weak, noise?
        1430    55.240 011A     vy weak, noise?

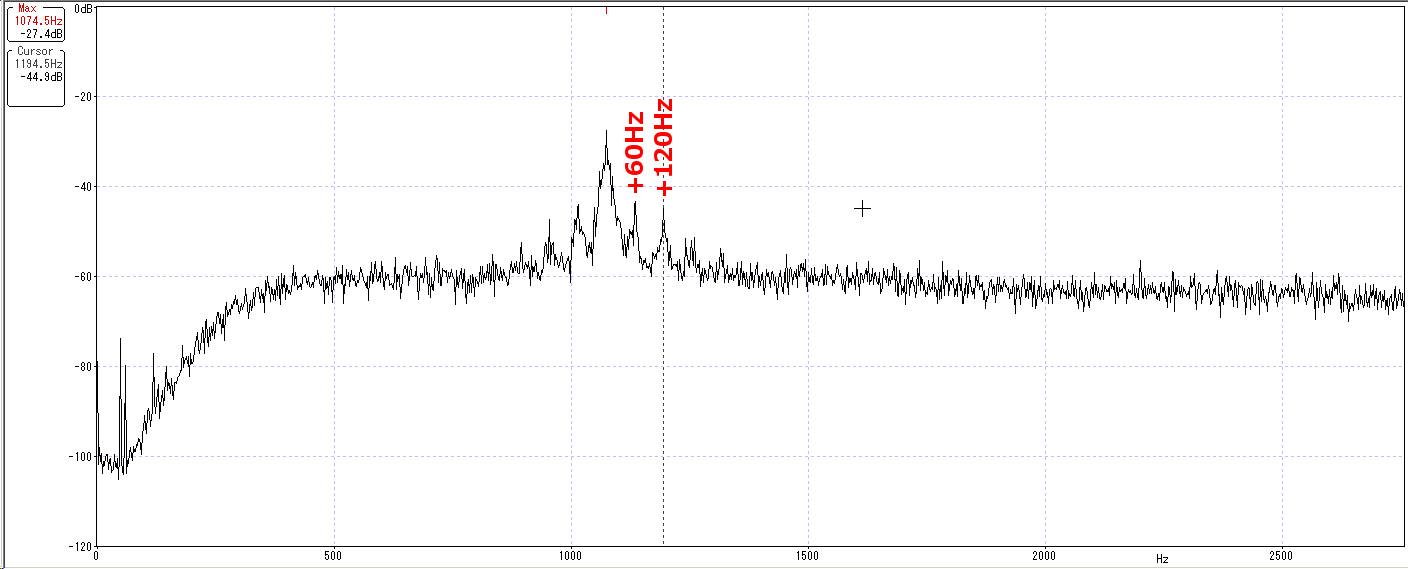

080523  1802    55.239 992 4    S1
080524  1604    55.239 991-4A   vy weak
080602  1506    55.240 014 5    vy weak, noise?
        1554    55.240 008 4    vy weak, noise?
080603  1713    55.239 997 1    S0
080606  1629    55.239 946 8    S0. 40.69 was not in so maybe a noise
080610  1617    55.239 991 4A
        1642    55.239 990 7    vy weak
080613  1606    55.239 991 3A   vy weak
080614  0832    55.240 017 0    vy weak, noise?
        0834    55.239 994A
        0909    55.239 991 9    weak
080617  1705    55.239 990A1
        1722    55.239 989A6    vy weak
080629  0859    55.239 991 7    vy weak
080723  1510    55.239 934 6    vy weak, noise? 40.69 was in
090507  0750    55.239 995 4    weak
------------------------------------------------------------

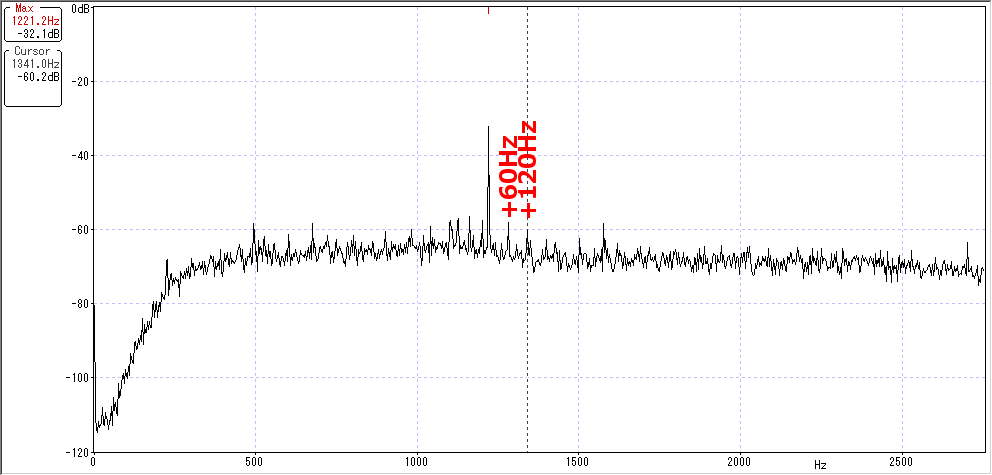

; Fairbanks KATN 28.2/5.5kW
060529  1523    55.260 015 6
060530  0840    55.260 043 7    S0 60Hz
060611  1650    55.259 973 1    noise?
070604  1355    55.260 000 2    weak
080610  1630    55.260 004 0    faint, noise?
080614  0908    55.260 064 2    vy weak, noise?
090507  0905    55.260 052 7
------------------------------------------------------------

Comparison of their signal strength (vy weak, weak, S0-S9. 'o' means S0 or less):

------------------------------------------------------------
YYMMDD  JST     AMBCS       KTUU-TV     KATN
------------------------------------------------------------
060529  15                  o           o
060530  07                  o
        08      weak        o           S0
        09      weak        weak
        10      weak        weak
060611  16      weak        o           ?
        17      weak        S0
        18      nil
        19      weak
060617  13      vy weak     weak
060624  18      S0          weak
070526  13      S1
070604  13                  S0          weak
        14                  weak
070627  16      S0          S0
        17      weak
        18      weak
080521  14      ?           noise?
080523  17      S1          weak
        18      S1          S1
080524  16      weak        vy weak
080602  15                  noise?
080606  16                  noise?
080603  17                  S0
080610  16      S1          o           vy weak
080611  07      weak
        08      vy weak
080613  16      vy weak     vy weak     S0
080614  08      S0          o
        09      S1          weak        ?
        10      S1
        11      weak
080617  17      S1          o
080629  08      weak        vy weak
        09      vy weak
080723  15      S0          ?
        16      ?
090507  07      vy weak     weak
        08      weak        weak        o
        09      S0
090620  07      weak
110605  16      S5
        17      S6
------------------------------------------------------------

My last reception of Alaskan A2 was on 7 May 2009. When the AMBCS 40.69 was heard again on 20 June 2009 I watched 55.24 very carefully but I could not detect any signals so I think the ASO in Alaska was on same date as the USA's ASO 12 June 2009.

But according to the wikipedia, ...

Fairbanks is at 5,213km in QTF33 from here.

43.65MHz JS2IR

45MHz NZ1

Here is a frequencies list received here in 2011. It is remarkable that Auckland(?) comes here often, and sometimes alone on NZ1.

------------------------------------------------------------
YYMMDD  JST-    MHz---------    Remarks
------------------------------------------------------------
; Reefton??
110414  1213    45.237 026 9    weak warbly, noise??
------------------------------------------------------------
; Mt Studholme, Canterbury??
110403  1419    45.239 247 1    noise?
110414  1212    45.239 272 3    vy weak
------------------------------------------------------------
; Te Aroha
110402  1352    45.239 602 5    vy weak
        1357    45.239 603 2    1411 S6
110403  1419    45.239 602 6
110404  1303    45.239 602 5    faint
110405  1148    45.239 604 3    S0 flutter
110406  1300    45.239 603 1A   vy weak
        1300    45.239 602 8A   measured again
110407  1200    45.239 601 2    S1
110411  1222    45.239 602 4    faint
110412  1131    45.239 602 9    S1
110413  1240    45.239 602 3    S0
110416  1233    45.239 602 5    S0
110424  1537    45.239 602 0    vy weak
110504  1326    45.239 602 7    S0
------------------------------------------------------------
; Auckland?
110224  1435    45.249 883 2    vy weak
        1500    45.249 882 1    vy weak
110406  1240    45.249 909 5    S2-3, V-sync 49.65AHz H-sync 15xxxHz(f/o before measurement)
	1413    45.249 882 1    vy weak, noise?
110411  1331    45.249 880 5    vy weak, V-sync 49.65AHz?
110412  1216    45.249 882 6    vy weak
110414  1208    45.249 882 2    vy weak
110416  1247    45.249 880 2    faint
110418  1314    45.249 877 2    faint
110424  1556    45.249 882 3    vy weak
110502  1240    45.249 884 3    faint
        1532    45.249 884 9    S0 V-sync 49.64AHz H-sync 15620.8Hz
        1559    45.249 884 4    S0 V-sync 49.65AHz H-sync 15620.4Hz
110924  1327    45.249 886 6    vy weak
------------------------------------------------------------
110402  1353    45.249 944 3    faint, noise?
110403  1457    45.249 932 4    weak, noise?
------------------------------------------------------------
; Wellington
110224  1338    45.249 970 7    vy weak
        1435    45.249 970 5    S0
        1500    45.249 970 5    S0
110402  1353    45.249 975 6    faint 1406 S0
110403  1411    45.249 975 0    vy weak
110404  1254    45.249 973 3    vy weak
110405  1141    45.249 982 2    faint
110407  1328    45.249 982 2    vy weak
110411  1258    45.249 976 7    faint 1333 S0
110412  1131    45.249 975 0    S5
110413  1241    45.249 974 0    faint
110414  1209    45.249 973 4    faint 1207-1342 S0
110426  1216    45.249 986 5    weak
------------------------------------------------------------
; Mt Hedgehope
110402  1406    45.250 000 4    S0
110403  1444    45.250 003 3    faint
110404  1305    45.250 002 6    faint
110405  1134    45.250 002 0    faint
110411  1258    45.250 001 2    vy weak 1333 S0
110412  1131    45.249 993 5    faint ??
        1135    45.249 999 8    faint
110413  1244    45.249 999 0    faint
110414  1208    45.250 004 0    S0
------------------------------------------------------------
110412  1135    45.250 012 0    received with 45.249 999 8
------------------------------------------------------------
110504  1332    45.259 928 2    faint, noise?
------------------------------------------------------------
; Nelson
110403  1440    45.260 002 2    vy weak
110405  1134    45.260 002 0
110412  1132    45.260 001 8    faint
110413  1241    45.260 001 4    vy weak
110414  1208    45.260 002 1    vy weak
------------------------------------------------------------
110409  1348    45.260 049 5    vy weak, noise?
        1350    45.260 013 4    faint, a drifting down noise?
------------------------------------------------------------
110414  1208    45.260 278 0    faint, 1233 weak 50Hz, 1252 S1
------------------------------------------------------------
; Whakapunake
110402  1401    45.260 320 0    S1
110403  1416    45.260 320 6    vy weak
110404  1338    45.260 321 9    faint
110405  1153    45.260 315A     S0 flutter
110407  1201    45.260 312 3    S1
110411  1256    45.260 321 3    vy weak
110412  1132    45.260 318 4    S1
110414  1243    45.260 317 0
110416  1302    45.260 318 7    weak
110504  1331    45.260 316 3    faint, noise?
------------------------------------------------------------
; Hikurangi
110402  1353    45.260 359 5    vy weak
        1401    45.260 360 1    S1
110407  1355    45.260 361 3    vy weak
------------------------------------------------------------

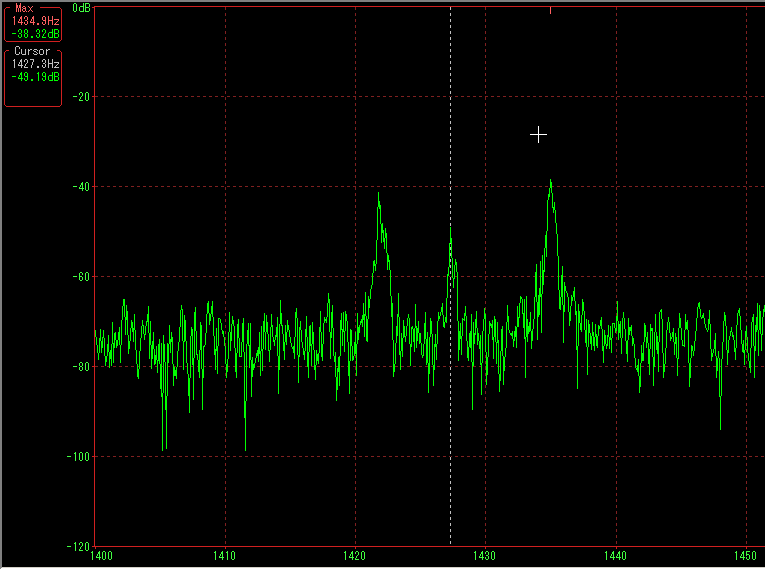

2011NOV22 0154z: 3 stations were in close frequencies, 45.239359, 45.260364 and 45.260372.

2011NOV17: most carriers were modulated by 50.0Hz. 2011NOV22: most carriers were modulated by 49.6-49.7Hz.

45.250MHz Russian FM

46MHz AU0

48MHz E2

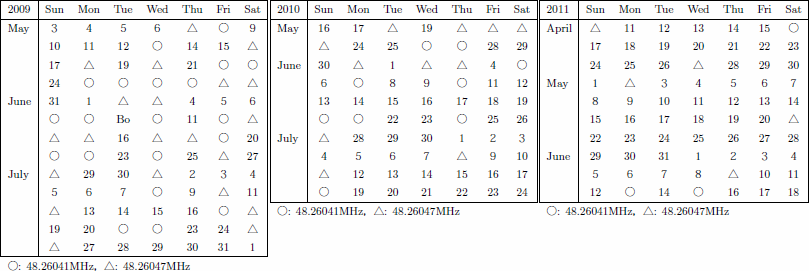

E2 in southeast Asia: I heard 48.26032 48.26041 48.26046 in 2011 summer. No report of 48.24/48.25 in this year from JA.

[2011 NOV 11] I made a table below and realized that 48.26041 and 48.26046 were never received at the same time, so maybe these are from same QTH. You can see 48.26046 was used for several days then 48.26041 was used for severel days, alternately. 48.26032 is usually much weaker than 48.2604.

------------------------------------------------------------
YYMMDD  UTC     48.26032        48.26041        48.260 46
------------------------------------------------------------
090507          48.260 321-2                    48.260 464
090508          48.260 320      48.260 410
090513          48.260 320      48.260 409
090516          48.260 320                      48.260 465-7
090518                                          48.260 462-6
090520          48.260 320                      48.260 466
090522                          48.260 407
090523          48.260 320      48.260 409
090525                          48.260 409
090526                          48.260 408
090527          48.260 320      48.260 408-9
090528          48.260 321      48.260 409
090529          48.260 320                      48.260 465
090530                                          48.260 465
------------------------------------------------------------
090602          48.260 321-2                    48.260 464-6
090603          48.260 321                      48.260 462-6
090607          48.260 320      48.260 410
090608          48.260 320      48.260 410
090609  0105                                    48.260 456
        0128    48.260 320      48.260 412
        0712    48.260 320      48.260 409
090610                          48.260 409
090612                          48.260 409
090613          48.260 320                      48.260 463-4
090614          48.260 320                      48.260 463
090615                                          48.260 465
090617                                          48.260 464
090618                                          48.260 466
090619          48.260 320      48.260 412
090621                          48.260 411
090622                          48.260 410-1
090624                          48.260 411
090626                                          48.260 464
090628                                          48.260 465
------------------------------------------------------------
090701                                          48.260 467
090708                          48.260 409
090710          48.260 318                      48.260 460
090712          48.260 318                      48.260 464
090717                          48.260 411
090718                                          48.260 478
090721          48.260 32       48.260 409
090722          48.260 318      48.260 410-1
090723          48.260 318
090725          48.260 319                      48.260 462
090726          48.260 319                      48.260 466-7
090729          48.260 319
------------------------------------------------------------
090812          48.260 319                      48.260 462
090819          48.260 319      48.260 411
------------------------------------------------------------
090928          48.260 318
------------------------------------------------------------
------------------------------------------------------------
100518          48.260 321                      48.260 463
100520                                          48.260 460
100521          48.260 324                      48.260 460
100522                                          48.260 463
100523                                          48.260 465
100526          48.260 323      48.260 412
100527                          48.260 414
100531          48.260 324                      48.260 464
------------------------------------------------------------
100602          48.260 324                      48.260 464
100603                                          48.260 463
100605          48.260 324      48.260 409-14
100607                          48.260 411
100610                          48.260 413
100620          48.260 326      48.260 415
100621          48.260 325      48.260 414
100624                          48.260 412
100627                                           48.260 463
------------------------------------------------------------
100708                                           48.260 461
100711                                           48.260 464
100718                          48.260 415
------------------------------------------------------------
100915          48.260 324      48.260 415-6
100923                                           48.260 462
------------------------------------------------------------
------------------------------------------------------------
110410          48.260 322                      48.260 455
110414          48.260 321
110416          48.260 324-8    48.260 408
110427          48.260 321                      48.260 458
------------------------------------------------------------
110502                                          48.260 460
110521                                          48.260 455
------------------------------------------------------------
110609                                          48.260 459
110613          48.260 320      48.260 407
110615                          48.260 405
110621          48.260 320      48.260 404
110623          48.260 324      48.260 407
110624          48.260 320      48.260 402-6
110625          48.260 321      48.260 407
110626                          48.260 406
110627                          48.260 406
110628          48.260 321      48.260 404-6
110630          48.260 322      48.260 404
------------------------------------------------------------
110701                          48.260 405
110704                          48.260 407
110705          48.260 322      48.260 402
110710                          48.260 403
110714          48.260 321      48.260 405
------------------------------------------------------------
110801          48.260 323      48.260 402-3
------------------------------------------------------------
110908          48.260 320      48.260 400
110911                          48.260 396-8
------------------------------------------------------------
111027                          48.260 390
111029          48.260 320      48.260 390
------------------------------------------------------------
111103          48.260 321      48.260 388-90
111104          48.260 320      48.260 389
111110          48.260 320      48.260 389
------------------------------------------------------------

[2012 JAN 12] I made a calendar below and found that in 2009 Phrae's frequency had switched before/after Friday. On 2009 JUN 09, both frequency were used (see the table above). In 2010, maybe same way.

Dubai

Harmonics of the Voice of Korea

48.3713MHz Sapporo Beacon

49.75MHz C1, R1

49.2504... DPRK
49.7487... 2 or more carriers. One of them is DPRK, its audio at 56.26
49.7491AV... 2 or 3 carriers here. One of them is DPRK. Its audio 56.17 in 2013, not received in 2014
49.749 695-705... A high power station in Jewish Autonomous Oblast. Birobidzhan?
49.749 871... Amur? mod by 44.6/50/94.5Hz same to the next one?
49.749 878... Amursk or Solnechnyy?? raspy heard with Amure
49.749 958... Kamchatska?? Not sure
49.750A... Magadan? I cannot catch it but JL8GFB often reports a strong carrier from north
49.749 997... Blagoveshchensk?? Belogorsk????
49.750 000... Okha vy noisy and sometimes raspy QTF0-10
49.750 002... Belogorsk?? Mod by 16.6Hz and 50Hz
49.750 0034-9... Progress/Raychikhinsk mod by 27.3Hz (Progress is about 20km east of Raychikhinsk)
49.750 0044A... Amursk or Solnechnyy?? mod by 21Hz heard with Amure
49.750 006... Khabarovsk
49.750 007... Belogorsk?? Blagoveshchensk????
49.750 007A... Hainan in 2013, the strongest carrier with F2 prop, moves
49.752 602... Southern Amur Obl
49.755 2AV... (Yakutsk)
49.757 814... Shimanovsk
49.758 9... Amur?
49.7594... DPRK QSY from 49.9V?
49.760 392... Often received in 2012. QSY to 49.760399?
49.760 399... Nikolaevsk-na-Amure? 193km west of Okha. Often received weakly with 49.750000 Okha in 2013
49.760 400... Often received in 2011. QSY to 49.760392(2012), 49.760399(2013)?
49.760 418... Poronaysk, vy noisy, modulated by 45Hz and 118Hz QTF0-10
49.760 500... Ulan-Ude? Always received with warbly 49.7396

Novozhatkovo is not on 49.7604; I heard 70.64 / 72.20 Novozhatkovo but 49.76+/- was quiet at that time. Also if the warbler is from Vladivostok (120km south of Novozhatkovo) , it should be received at the same time with Novoahatkovo FM but I heard no warbler around 49.75.

Sakhalin

49.744 793... a sideband of Poronaysk: 49.760418 - 0.015625
49.750 000 0A... high power in northern Sakhalin. Freq vy stable. A very noisy carrier
49.760 418... Poronaysk a very noisy carrier, modulated by 45Hz and 118Hz
59.239 593... Alexandrovsk-Sakhalinsky?
77.239 601... Sakhalin. Yuzhno-Sakhalinsk????
93.239 583... Okha raspy, mod by 22/50Hz received with 67.16/69.20/89.0

Poronaysk: 1,068km QTF7.

110703  xxxx    49.7604         QTF roughly 0 (with 8el at JA7YAF)
120519  1931    49.760 417 6    S3 noisy, mod by 22/44/67Hz
120707  xxxx    49.7604         QTF roughly 10 (with 8el at JA7YAF)
120707  xxxx    49.7500         QTF roughly 10, very noisy

The Warblers

49.749?, 49.750, another 49.750?, 57.703(found on 27AUG2012), 57.749, 57.750, 65.750, 77.250

The warbler 49.750 have been thought from Vladivostok. It is at 859km in QTF299 from here. VK4CP could receive the 49.75 warlber 24hrs at Longkou, about 1808km QTF269 from here.

I do not have any directional antennas. When I went to a high school JA7YAF for '6m and down contest' I monitored 49.75 as follow:

110703  01xx    49.750A         QTF roughly 270-280 (with 8el at JA7YAF)

I can hear the warbler 49.750 everyday in our Es season. It suggests (at least one of) the warblers is located in roughly 1,200-2,000km from here. Then another question arises: where is Vladivostok?

An old Article

I found an old article on the warblers in my hard-disk:


I think this was the old Vladivostok: 11MAY2004 2225z 49.749MHz USB. This warbling carrier had been heard until 2007 or early 2008.

Since 19MAY2008 a new warbler appeared and it was heard everyday in the Es season: 30OCT2009 0912z 49.749MHz USB

Sometimes two warbler's were received at the same time: 05JUN2008 2345z 49.749MHz USB

I thought at first the Vladivostok transimtter was tweaked in late 2007 or early 2008 and the one of the new warbler's was Vladivosok.

But similar warbling carriers were received on C2 57.75, C3 65.75, C4 77.25 since MAY 2008: 06JUN2008 0719z 57.749MHz USB. I think these type carriers were never heard before 2008(need to check my log).


Yakutsk?

49.7552AMHz 2,602km QTF346

090607  0906    49.755 28A      warbly. China possibility
090809  2338    49.755 1A       wide warble. Maybe China

10                              I was lazy...

110605  0709    49.755 196A     faint, warbly?
110609  0428    49.755 399AV    S1, warbly? China??
        0448    49.755 396AV    weak. China??
110610  1114    49.755 234AV    weak
110703  xxxx    49.755 2A       QTF roughly 330-340 (with 8el at JA7YAF)
110704  1033    49.755 197      S1, modulated by 40.3Hz
110723  0931    49.755 176      weak, modulated by 40.5Hz
110729  0903    49.755 18AV     weak
110730  0042    49.755 198AV    weak warbly

Note: There is a 49.7550-49.7555A with a large warble presumed from China.

Shimanovsk bought a Rubydium oscillator?

Shimanovsk had been drifting in 49.7580-49.7584MHz, but it is always within 1Hz now.

49.757814-49.757815MHz in 2011 1,716km QTF327

110703  xxxx    49.757 8        QTF roughly 330-340 (with 8el at JA7YAF)
120519  1925    49.757 814 3    S7 a bit dirty

Hainan

49.750005 in 2011.

49.7500073-49.7500074 on 25 FEB 2012.

DPRK?

This is written in 2012: I heard Korean audio on 56.25 only once. I think this had northern Korean accent, but China may have a few Korean station.

2013: A north Korean audio was often heard on 56.16-56.17, its video freq was 49.7491AVMHz.

2014: A nort Korean audio was heard on 56.25 once with strong video 49.7487. No audio was heard 56.16-56.17 with 49.7491 so far (on 11 Jun 2014).

Central Asian R1

Until some years ago, I can hear 2 weird carriers at around 49.7396MHz. Now only 1? Also there was a wowing carreir at 49.7604, but it disappeared several years ago.

Russian Type Spectrum

C1/R1 large offsets

video       audio
(47.7)       53.70      DPRK? 1998
 48.75       55.25      CHN 2008
(49.25)      55.75      CHN 2001
 49.25      (55.75)     DPRK? 2012
 49.7491     56.25      DPRK 2013
 49.7594    (56.26)     QSY from 49.9V?
(49.88)      56.38      CHN 2002
 49.9V      (56.4)      DPRK? 2012
(49.9)       56.40      DPRK 1994
 50.50      (57.00)     a video carrier 2007
 50.528      57.03      CHN 2012
 50.55       57.05      CHN Henan? 2009
 50.618      57.12      CHN Jiangsu or Anhui? 2001 / audio 2002 / video carrier 2003
 50.67      (57.17)     a video carrier 2007
 50.745      57.245     CHN 2012
 50.75      (57.25)     a video carrier 2009
(50.75)      57.25      CHN 2009
 50.755     (57.255)    a video carrier 2002 same to 50.75?
(50.775V)    57.275V    CHN 2002
(50.8A)      57.3A      CHN 2002

48.75 video / 55.25 audio

48.75070-48.75081 video / 55.25 Chinese audio had been often received in JA. I heard them for 9 days in 2007, but my last reception was on 29 JAN 2008, so it is presumued to QSY/QRT.

49.25 video

49.2504 have been heard often when DPRK TV/FM are in.

49.9 video

A raspy carrier moduleated by 50Hz is drifting around 49.88-49.95. It have been received with other DRPK TV/FMs. A Japanese DXer heard an audio on 56.40 in 1994.

50.5 video / 57.0 audio

070520  1335    50.550 043 4    S1 50Hz
070520  1336    50.500 773 4    S1 50Hz 1-2Hz warbly?
070623  1856    50.549 898 5V   S7 50Hz
090701  1431    50.525 650V     S2 50Hz, 1432 50.525643AV drifting down
120519  1946    50.527 746V     S5 49.97Hz, Chinese audio at 57.025A
120519  2018    50.527 797V     S2 drifting up
120519  2038    50.527 778V     S1
... (heard many times)

50.67 video

070518  1640    50.665 733      S1 50Hz

50.75 video

070623  1854    50.745 572 1    S7 50Hz a bit dirty, heavy QSB / 57.25 nil
070627  1430    50.745 660 3    S7
090809  1207    50.744 492 8    S2 50Hz
120606  1136    50.744 713 6    S7 a bit dirty / 57.245 nil
120606  1211    50.745          S6 / 57.245 Chinese audio S2
120610  1410    50.744 659 8    S4 50.0Hz
120610  1931    50.744 602 3    S1

50MHz

Around 50.1MHz

Music or voice in AM or FM mode have been sometimes received around 50.1MHz in JA, in southeast Asia, and sometimes in VK(also in ZL?). In 2011 autumn (OCT/NOV), 50.080 was received in JA2,3, sounded like Vietnamese or something.

Some of them may be a subharmonics of FM transmitters on 100.2MHz?

I found a CD/DVD player used by my father transmits its audio on around 50.24AVMHz.

A brief list 50.10+/- unid compiled on 2014 JUL 31

Not complete list from my log

Date            JST     MHz     mode
2001--2005      *       50.02   NBFM    JA3? Talking, heard several times

2009OCT23       15      50.025  FM      (Asian pirates was heard by VK4FP, strong)

2005MAY20       2101    50.030          (`WRM' into JA5)

2014APR15       1658    50.0380 AM      conversations among 2-3 stations, SE Asia?

*               *       50.04   NBFM    JA3? Talking, very active
2005APR14       16      50.040  FM      (Asian 2-way FM was heard by ZL4, full quieting) JA3?

2002OCT28       12      50.050  AM      (VU-BC into JR6? AIR harmonic 7150*7)
2009NOV25       16      50.050  FM      (Chinese FM two ways into VK3SIX)

2011NOV04       14      50.080  FM      (A broadcastiong station, music and talk (not standard BY language) into JA2, could be somewhere around Thai or Vietnam)

2004MAY18       12      50.092  CARR    (a strong carrier with QSB into JA8)
2004JUN02       13      50.107  FM      (HL in FM into JA3)
2004NOV11       10      50.100  AM      (Music into JA2 QTF100 QSB)
                1031    50.099992 AM    Music S3, 1032 bee-poo-bee-poo, 1032 test tone?
2004NOV29       15      50.105  FM      (Chat in Korean lang heard in JA3)
2005APR23       18      50.100  FM      (HL?-group chatting heard in JA3 vy strong)
2005APR23       19      50.100          (BY-stn into JA2 R5)
2006APR26       13      50.100          (BY-chatting into JA3 Es QTF260)
2005MAY20       21      50.100          (HL-chat into JA3)
2006MAY10       15      50.10   FM      (Chinese chatting heard in JA3 loud QTF250)
2006JUN08       21      50.108          (BY into JA8 strong QTF290) rag-chewing?
2013OCT21       1513    50.100  FM      weak FM talking, not broadcast?

2014            *       50.0-50.15? CARR a very raspy carrier when P5 in, P5-TV?

2009MAY13       11      50.150  FM      (Chinese into JA1 in FM)
2010SEP28       14      50.150  AM      (Russian pirates? into VK4 in AM mode)

'Mobile beacons' in JA3

When I have a propagation to JA3, I can hear several un-id stations which are talking from their automobiles on 50.04 and 50.9-54MHz. 50.04 was once heard in ZL!

53.75000MHz JA9YDB Sabae Beacon

55MHz A2

55.249 7... DXET's old frequency. Nothing in for these years
55.249 977... low power TX near Manila, received always with DWWX
55.249 987... DWWX Manila 3412km QTF221
55.250 006... TV5 DXET Davao? a very high power TX in southern Philippines 3951km QTF208

With Es propagations, 55.249 987 DWWX is much stronger than any other carriers. With F propagations, 3 or more carriers are strong around 55.250 000. 55.250 006 is the most frequent one.

TV5 unknown QTH have been received often in JA1-6, some reception of them were thought from Davao but not identified.

55.275MHz a Drifter

There had been a 55.2512AMHz modulated by 60Hz with a fast warble until 2008 but I could not catch it in 2009. I found 55.2524AMHz a warbly carrier in 2010 and heard it for several times in that year. It had a similar warble as 55.2512 but was always weak (maybe because of too bad Es year).

I heard 55.271-55.277AVMHz drifting carrier modulated by 60Hz a few times in 2011, instead of 55.2524. Do these come from same QTH?

11????  ????    55.26           the first reception, maybe a sideband of 55.27
110607  0854    55.258 97AV     warbly, drifting up, mod by 60Hz. Maybe a sideband of 55.2747
        0910    55.276 13AV     S6 drifting
        0928    55.276 57AV     S1
        0959    55.276 24AV     S1
        1037    55.273 35AV     S1
        1043    55.272 90AV     S0
        1054    55.272 82AV     S0
        1110    55.273 23AV     weak
        1128    55.273 44AV     vy weak
        1150    55.273 31AV     faint
        1208    55.273 71AV     faint
110613  0917    55.276 51AV     warbly, drifting
        1025    55.274 91AV
110624  1001    55.271 40-1AV   S1 drifting

After this I heard this several times.

11 Sep 2011: I heard 55.25245A warbler, freq stable, which is similar to 55.2524 in 2010 mentioned above. This is the 1st reception in this year.

18 Sep 2011: 55.25246A S6 warbler, freq stable, modulated 60AHz and 15.7AkHz.

20 Sep 2011: 55.25242A warbler, freq stable.

2012: I cannot find the warbler/drifter in this year.

Korean A2

I think this is form Korea, but have to look up my log again to make sure.

110517  0858    55.250 602      S0 mod by 60Hz
110520  0721    55.250 594      weak
        2316    55.250 599      weak
110620  0332    55.250 572      weak
110623  0224    55.250 570      weak
        0245    55.250 567      S0 mod by 60Hz
110624  0219    55.250 581      S0
110625  0956    55.250 579      weak
110626  0906    55.250 578      vy weak
        2337    55.250 578      vy weak
        2358    55.250 576      S1 mod by 60Hz
110627  0012    55.250 578      weak
        1001    55.250 582      weak
        1023    55.250 579      weak
110725  0341    55.250 570      S0 alone on A2
110726  0233    55.250 595      weak
110727  0335    55.250 574      S0 mod by 60.0Hz
110818  0335    55.250 563      weak
110908  1102    55.250 564      very weak, alone on A2

There was a dirty carrier presumued from Korea, but it disappeared several years ago.

AFN Korea stopped its analogue TV transmission on 1 MAY 2012. Nothing have been heard on around 55.25 from Korea this year.

55MHz E3

55.26MHz a Drifter

This is an old article. I think this is same carrier as '55.275MHz aDrifter'.

I found 55.26112AMHz a warbly carrier S1 modulated by 50Hz at 0912z on 13 May 2011. It drifted to 55.26164AMHz at 0923z. At the same time 55.250005MHz Philippine was S5, other A2/E3 and E2 was not in. 57.75 C2 and JA6YBR/b was in.

My second reception was as the following. A DXer in JA0 also could receive it. At that time E2/E3/E4 were not in, but A2 Philippines video carriers were S0-1.

110626  0846    55.260 08AV     weak, mod by 50Hz, the carrier sometimes stops?
        0850    55.260 95AV
        0903    55.261 81AV
        0909    55.262 27AV
        0919    55.263 13AV     stayed around this freq for a few minutes
        0926    55.262 90AV
        0935    55.261 82AV
        0947    55.260 98AV
        0949    55.261 09AV
        1000    55.260 20AV
        1008    55.260 39AV
        1028    55.258 95AV     weak 50Hz
        1038    55.258 63AV
        1044    55.257 42AV
        1050    55.257 76AV
        1054    55.257 25AV
        1108    55.255 17AV
        1118    55.253 81AV     faint
        1122    55.253 02AV
        1127    55.252 03AV     faded out

        15      55.2502A-55.2576A       found 'sweeper' for the first time
        17      55.253 0AV      'sweeper' changed to 'drifter'
        1807    55.254 4AV
        1815    55.253 4AV
        1819    55.253 1AV
        1822    55.254 02AV
        1829    55.254 33AV     S1
        1839    55.254 70AV     S1
        1844    55.254 80AV	S1 +49A +119A +181A +235A -49A -118AHz
        1846    55.254 84AV	S1 +50A +123A -51AHz
        1859    55.255 15AV     S1
        1933    55.255 57AV     S0
        1938    55.255 99AV     faint
        1942    55.256 33AV     f/o Manila is still S6
        19 Manila faded out

26JUN2011: I caught a 'sweeper' 55.25010A-55.25764AMHz a little before 07z...

1JUL2011: It was always weak but I managed to find out today that it was modulated by roughly 50AHz, 120AHz, 15.75AkHz, is it not E3 but same as the A2 drifter?

57MHz AU1

59MHz R2

58.9-59.4V... several drifting carriers are received at the same times, maybe from DPRK
59.019 9... (DPRK)
59.125 8... (DPRK)
59.239 59V... Amur? warbly or raspy, obviously not from Sakhalin
59.239 593... Sakhalin. Alexandrovsk-Sakhalinsky? No warble
59.249 973... DPRK? Not Russian spectrum
59.250 019... Dal'negorsk 70.04 71.90 102.4
59.250 022... Kamchatska?
59.260 9... vy noisy, received with 49.7396V, 49.760500, 2-hop?
59.261... not often but always strong, warbly, Primorskiy?(Mikhaylovskiy 865km??)

DPRK R2

This table contains a part of weird carriers received here and reception reports from JA DXers. Some of these may be a same carrier or a sideband of another carrier.

video       audio
 56.38      (62.88)     DPRK? CHN?? Received with many weird carriers 06JUN2012
 58.9982V   (65.50)     DPRK? 2010 2009
 59.00       64.85-64.98    Korea Central TV ID 2009
 59.003     (65.50)     DPRK? often received in 2009-2010 / modulated by 51.8Hz 27JUN2010
 59.006     (65.51)     DPRK? 2012
 59.020     (65.52)     DPRK? Often received when DPRK FM in
 59.028V    (65.53)     DPRK? drifting up
 59.0294    (65.53)     DPRK? mod by 50.8AHz 2009,20JUN2010
 59.03V                 DPRK? drifting down 08JUL2009
 59.032     (65.53)     DPRK? 09AUG2009
 59.037     (65.54)     DPRK? 2012 2010
 59.051     (65.55)     DPRK? 2012 2010
 59.0548    (65.56)     DPRK? 27JUL2011
 59.095     (65.60)     DPRK? 09AUG2009
 59.1015    (65.60)     DPRK? 09AUG2009
 59.119A    (65.62)     raspy?
 59.1247    (65.62)     DPRK? 09AUG2009
 59.126     (65.63)     DPRK? 2012
 59.1302    (65.63)     DPRK? 09AUG2009
 59.215A    (65.72)     DPRK? vy raspy 09AUG2009 / raspy mod by 51.8Hz 08JUL2009
 59.240V                DPRK? drifting up fast, 59.309 30min later
 59.244V                DPRK? drifting up fast, 59.334 46min later
 59.243     (65.74)     DPRK? 2012
 59.2453    (65.74)     DPRK? 01JUL2009
 59.2458    (65.74)     DPRK? 09AUG2009
 59.248     (65.75)     DPRK? 2011
 59.2487    (65.75)     DPRK? 09AUG2009
 59.250     (65.75)     DPRK?
 59.251     (65.75)     DPRK? 2012
 59.2514    (65.75)     DPRK? 09AUG2009
 59.25248AV (65.75)     ?
 59.254     (65.75)     DPRK? 2011
 59.275V    (65.78)     DPRK? 2012,2011,20JUN2010
 59.283V    (65.78)     DPRK? 2011 20JUN2010
 59.2917    (65.79)     DPRK? 49.8AHz 20JUN2010
 59.3AV                 DPRK? Drifting up more than 0.1MHz
 59.3038    (65.80)     DPRK? warbly 09AUG09
 59.3073    (65.81)     DPRK? 20JUN2010
 59.315     (65.82)     DPRK? 09AUG2009
 59.3273    (65.83)     DPRK? 20JUN2010 maybe same carrier as 59.3073?
 59.3489    (65.85)     DPRK?
 59.363V                DPRK? drifting up fast 24JUN2010
(59.46)      65.96      DPRK audio received by Mr Hasegawa on 4Jul2012

61/67/77/83MHz A3, A4, A5, A6

Korean A3, A4, A5, A6

Philippines A3, A4, A5, A6

62MHz E4

64MHz AU2

65MHz C3

060521  1715    65.733820-3     audio at 72.23
110805  1706    71.76           very weak audio, Chinese? Didn't check the video frequency (65.26MHz?)
120826  1635    67.266 881      S1 mod by 50.0Hz clean spectrum

C3 large offsets

66.75 video / 73.25 audio have been often received in JA but I can hear nothing on around these frequencies here in my 10+ years reception history. It probably means that it is located around 2100km or more from here.

A DXer Mr Hasegawa in Nagoya supposes that it is located in around Anhui province, Hangzhou, Shanghai or so. I can hear very east part of Anhui here so I think it is located in around central or west of Anhui province.

77MHz C4, R3

77.239 579-590... (Arsen'ev) warbly
77.239 601... Sakhalin. Yuzhno-Sakhalinsk????
77.249 53-54V... Birobidzhan??
77.249 954... Khabarovsk Very strong dirty just 50Hz lower than usual on 3,5JUL2012
77.249 992... Okha FM modulated like 49.750000. 67.16 69.20 89.0 93.239631
77.250 000... Kamchatska??
77.250 002-3... Birobidzhan? A bit dirty
77.250 004... Khabarovsk Very strong dirty with 71.24/72.02/72.80 / returned 6JUL2012
77.250 006-7... Petropavrovsk-Kamchatskiy dirty, sometimes mod by 38Hz. Always only 69.68/71.90 are heard in OIRT band, also with 99.249990
77.250 007... Belogorsk? A bit dirty but mod by 50Hz only
77.250 007-8... Ust'-bol'sheretskiy? Mod by 7.3-7.5Hz, heard before/after Kamchatskiy
77.250 009... Vladivostok? 69.68 71.84 (and Zeya) only in in OIRT band
77.250 08AV... Obluchenskiy?? Birobidzhan???? with a large warble
77.260 399-419... Blagoveshchensk sometimes very noisy. Always with 71.30/72.86/73.64/88.7
77.260 4V... Medium power warbly

C4 large offsets



85MHz C5, R4

85.239 593-6... Zeya warbly, with 66.68 68.24
85.247 3-5... Svobodnyy very raspy with 69.92 71.84 103.4
85.247AA... Svobodnyy heavily raspy 85.233-85.264A since 13JUN2012
85.249 1-2... DPRK possibility
85.249 238... a bit dirty
85.249 85-86... China
85.249 918
85.250 002-5... Bidzhan a video carrier modulated with a Russian audio audible in AM/SSB mode 70.07 71.93
85.250 011
85.250 014
85.250 724
85.252 597... 50Hz a bit dirty, Russia??
85.253 004... ?
85.253 277... DPRK possibility. 50.0Hz clean carrier
85.253 598
85.255 431.... ?
85.260 406... Dal'negorsk?? Received with 70.04 71.90 (102.4)
85.260 407... Chegdomyn raspy and noisy. Always received with strong 70.16V 71.96

Note: Khabarovsk Radio / Chegdomyn had been on 70.16 until 2010, 70.17 in 2011, and is now on 70.16 in 2012.

Zeya?

Zeya page

91/97/103MHz J1, J2, J3

J1

J1- 91.239990MHz, J1o 91.250000MHz, J1+ 91.260010MHz.

------------------------------------------------------------
YYMMDD  JST-    MHz---------    Remarks
------------------------------------------------------------
080717  1938    91.239 956 7    vy weak
------------------------------------------------------------
080717  1938    91.239 980 4    vy weak
------------------------------------------------------------
; JOIR-TV TBC Tohoku Hoso, Sendai, JA7 10kW 165.9km QTF189
060916  1958    91.239 990 0    S8
080717  1938    91.239 990 0    S7
110619  2224    91.239 990 0    S9+10
110620  1955    91.239 989 8A   S9+30
------------------------------------------------------------
110620  1956    91.249 675 9A   weak
110619  2225    91.249 733 3
------------------------------------------------------------
; ABS AkitaHoso, Kakunodate relay, 3W 54km QTF256?
110724  2359    91.249 865 1    weak
------------------------------------------------------------
080717  1939    91.249 925 4    weak
------------------------------------------------------------
060916  1959    91.249 960 4    S0
------------------------------------------------------------
110620  1956    91.249 994 7A   S0
------------------------------------------------------------
; JOAK-TV NHK General TV Tokyo, Tokyo, JA1 50kW? 468.7km QTF195
; JOHR-TV HBC Hokkaido Hoso, Sapporo, JA8 10kW? 374km QTF29
060916  1959    91.250 000 0    S1
080611  2238    91.250 000 0    S0
080717  1939    91.250 000 1    S7 FM stations in Tokyo were strong at that time
110619  2225    91.249 999 9    S1
110620  1956    91.249 999 4A   S0
110724  2358    91.250 000 1    S1 JOAK-TV
110724  2359    91.250 000 1    S0 JOHR-TV?
------------------------------------------------------------
; JOIF-TV KBC Kyushu Asahi Hoso, Fukuoka, JA6 10kW? 1,180.0km QTF238
090615  0855    91.250 000 1    S2
090725  1832    91.250 001 1    S4 QSB. Or Kagoshima?
        1916    91.250 000 8    S5 QSB. Or Kagoshima?
        2011    91.249 999 9    S5 deep QSB. Or Kagoshima?
090811  1131    91.249 999 8    Fukuoka?
090912  1612    91.250 000 1    Fukuoka?
------------------------------------------------------------
; JOCF-TV MBC Minami-Nihon Hoso, Kagoshima, JA6 5kW? 1,315.9km QTF229
080611  0929    91.249 999 9    or Tokyo, Sapporo?
090530  0815    91.250 000 9    strong with QSB
090617  1413    91.250 000 6    S6 QSB
090621  1248    91.249 999 7    S7
090701  1515    91.249 999 8    S5 QSB
090715  0937    91.250 000 1    S7 QSB
090725  1832    91.250 001 1    S4 QSB. Or Fukuoka?
        1916    91.250 000 8    S5 QSB. Or Fukuoka?
        2011    91.249 999 9    S5 deep QSB. Or Fukuoka?
110620  1214    91.249 999 9    S5
------------------------------------------------------------
060916  1959    91.250 091 3    weak
------------------------------------------------------------
060916  1959    91.250 103 6    weak
------------------------------------------------------------
110619  2225    91.250 401 0    S0 dirty?
110620  1956    91.250 474 6A   weak warbly?
------------------------------------------------------------
060916  2000    91.259 882 4    S0
080717  1940    91.259 873 3    vy weak
------------------------------------------------------------
; NHK General TV Hiroshima, Fukuyama relay, JA4 1kW?
; MBC Minami-Nihon Hoso, Kagoshima, China relay, JA6 100W?
110620  1215    91.259 993 6    S1 not Nagasaki
                91.260 009 4    S1 or Nagasak
------------------------------------------------------------
110619  2227    91.260 008 3
------------------------------------------------------------
; JOGR-TV RAB Aomori Hoso, Aomori, JA7 5kW? 126.4km QTF339
060916  2000    91.260 010 1    S0
080717  1940    91.260 010 1    S0
110619  2227    91.260 010 2    S0
------------------------------------------------------------
; JOAC-TV NHK Educational TV Nagasaki, Nagasaki, JA6 1kW? 1,275.6km QTF236
090912  1610    91.260 010 0    Nagasaki?
110620  1215    91.260 009 4    S1 or Fukuyama, China?
------------------------------------------------------------
060916  2000    91.260 019 9    S0
------------------------------------------------------------

'China' in Kagoshima is pronounced as 'CHEE - NAH'.

J2

J3

93MHz R5

93.238 404... DPRK? 50.0Hz clean
93.239 3... DPRK?
93.239 583... Okha raspy, mod by 22/50Hz often received with 67.16/69.20/89.0
93.239 631... low-medium power in Amur or so. A bit dirty but not raspy
93.246 3... DPRK?
93.246 5... DPRK?
93.249 983-4... Khabarovsk dirty 71.24 72.02 72.80 93.249991 on 2JUL2012 -93.250 011?
93.249 990... Petropavrovsk-Kamchatskiy 69.68 71.90 77.250007(dirty)
93.250 005... Amursk? With very strong 66.92 Mayak, 68.72 R. Rossii
93.250 010-1... (Shimanovsk) a bit dirty with 66.92 R. Rossii, 68.72 Mayak
93.250 019... Russia? vy raspy, 93.249 969?
93.250 1-3... Russia
93.250 1-3... High power TX in DPRK. 99.75 Korean audio 2 stations in DPRK?
93.253 383... DPRK?
93.253 916... (Dal'nerechensk) 67.22 69.32
93.257 809... Blagoveshchensk always fades in/out with 71.30 72.86 73.64 88.7
93.260 401... Low-medium power in Amur? rare
93.260 416AV... (Vladivostok) heard with 69.68 71.84 88.3. Huge number of MS bursts at night

93.2396

100624  1612    93.239 582 5    S7 raspy, with 67.16/69.20
110525  1646    93.239 5A       S5 raspy, with 67.16/69.20 strong
110704  1920    93.239 580 9    weak raspy, mod by 22/50Hz, with 67.16 weak
110710  1852    93.239 583 3    weak raspy, with 67.16
110714  1646    93.239 6        S1 raspy, with 67.16
110715  2036    93.239 584 6    S1 raspy, with 69.20
        2148    93.239 582 1    S5 raspy, with 69.20
110727  1501    93.239 582 8    weak raspy, 67.16/69.20 nil
        1634    93.239 632 5    S1 raspy, maybe 93.2395825, 67.16/69.20 nil
        1947    93.239 582 6    S1 raspy with 67.16/69.20
        2008    93.239 6        S1 raspy, with 67.16
        2034    93.239 577 5    S1 with 67.16/69.20
110729  1602    93.239 583 2    raspy, with 67.16
        1607    93.239 6        S0, wtih 67.16
        1641    93.239 6        S1, with 67.16
110816  1707    93.239 583 1    weak raspy
110817  0905    93.239 583 1    S0 raspy, mod by 22/50Hz
110826  1603    93.239 582 7    weak raspy mod by 22Hz with Sakhalin 66.08 70.40 72.08
120528  1336    93.239 583 4    S1 raspy mod by 22/50Hz, with 67.16/69.20
120606  1837    93.239 579 8    S1 raspy, with 67.16 72.08

DPRK?

090701  1246    93.239 271 7    S0 50Hz DPRK??
100620  0829    93.250 169 9    S2 50Hz. R2v, R4v quiet, 77.25(C4?) vy weak, no UA0-FM
        1010    93.250 110 7    S1 50Hz. R2v S1, 77.25 S4(C4?), R4v quiet, no UA0-FM
        1233    93.250 126 0    S6 50Hz. R2v S1, 77.25 S5(C4?), R4v quiet, a few UA0-FM
120606  1036    93.250 248 0    S0 50.0Hz. MUF towards Russia was 59MHz
        1124    93.250 244 5    S5 50.0Hz clean carrier
        1141    93.250 239 7    S5. North Korean audio S7 at 99.75

Band III

China

I think I could caught C6v 168.25, C7v 176.25 for the first time in 2012.

------------------------------------------------------------
120610  1308    168.250 156 7   S1 QSB
        1316    168.249 969 5   weak mod by 50.0Hz
        1321    168.250 073 7   S0 QSB mod by 50.0Hz
        1329    168.250 234 2   S6 50Hz
        1331    176.249 971     S3
                176.250 003     S3 mod by 50.0Hz
120611  1030    168.250 008 2   weak
        1035    168.250 007 6   vy weak
        1041    168.250 006 8   weak
------------------------------------------------------------

Korea

Es

------------------------------------------------------------
070618  1745    175.249 975 6   S0 60Hz Korea
070618  1746    175.242 286 1   noise?
080622  1036    175.250 008 7   S0 60Hz Korea
------------------------------------------------------------

J4

Masked by JOQG-TV NHK Genaral TV Morioka 3kW 21.2km QTF199 171.260010MHz

J5

GW and Tr

------------------------------------------------------------
; JOHB-TV NHK Educational TV Sendai 10kW
070620  2025    177.239 990 3
110619  2212    177.239 990 1   S1
110620  2006    177.239 989 8A  S1
------------------------------------------------------------
110620  2007    177.249 505 6A  S0
------------------------------------------------------------
; NHK General TV Morioka,  Ninohe relay 250W?
070620  2027    177.250 003 4
110619  2213    177.250 005 1   S1
110620  2007    177.250 005 0A  S1
------------------------------------------------------------
110620  2007    177.250 440 3A  weak
------------------------------------------------------------
; JOTC-TV NHK Educational TV Aomori 5kW?
; NHK Educational TV Akita, Yuzawa relay 90W?
110619  2215    177.260 006 8   faint
------------------------------------------------------------
070620  2027    177.260 621AV   ??
------------------------------------------------------------

J6

Masked by JODF-TV

------------------------------------------------------------
; JODF-TV IBC Iwate Hoso 3kW 21.2km QTF199
070618  1746    183.249 999 6
070618  1746    183.249 999 9
070620  2019    183.249 999 6
070620  2019    183.249 999 9
110619  2210    183.249 999 8   S9+30
110620  2008    183.249 999 6A  S9+30
------------------------------------------------------------

J7

Nil

NOTE: J7 (188-194MHz) and J8 (192-198MHz) have a 2MHz width of overlap 192-194MHz. The reason have not been a famous story, almost completely forgotten (I read about this only once in my 42 years life).

The IF frequency of Japanese monochrome TV sets was decided to 27MHz video, 22.5MHz audio in 1953, and 26.75 / 22.25MHz in 1960. For example, to view J4 170-176MHz the local oscilator generated 198MHz (= 171.25 + 26.75) so if J8 was allocated to 194-200MHz the 198MHz LO would cause a interference to J8. Also J5 and J9, J6 and J10, J7 and J11 had a same problem.

J11 have been at 210-216MHz. After the US Forces Japan's RADAR on 220MHz+/- QRT, J12 was allocated to TV. It was discussed which would be better to allocate 214-220MHz to avoid LO interference from J8 or 216-222MHz to avoid the overlap.

In Japanese analogue color TV sets, the IF have been 58.75/54.25MHz so these interferences never happened, but because of the overlap J7 still could not be used near the J8 transmitters. For example Tokyo tower had a very high power J8 TX, and also Morioka in JA7 (450km from Tokyo tower) had a high power J8 TX. So J7 was almost never used not only in JA1 but in almost all JA7 prefectures excluding the northest prefecture Aomori which is located at more than 500km from Tokyo, 100km from Morioka.

I am located in northern Morioka, at 469km north of Tokyo tower, and I could catch J8 from Tokyo tower often in summer with a casual home TV system.

Reference: Intermediate Frequency of V.H.F. TV Receiver by Kazuo Suzuki, in Japansese

J8

Masked by JOQC-TV

------------------------------------------------------------
; JOQC-TV NHK Educational TV Morioka 3kW 21.2km QTF199
070618  1746    193.250 000 0
070620  2019    193.250 000 0
110619  2207    193.250 000 0   S9+10
110620  2009    193.250 000 4A  S9+10
------------------------------------------------------------

J9

GW

------------------------------------------------------------
; NHK General TV Morioka, Ichinoseki relay 25W?
070620  2021    199.239 982 7
110619  2204    199.239 981 7   S0
110620  2010    199.239 982 0A  S0
------------------------------------------------------------

The ASO in Japan

The ASO in Japan was done on 24 July 2011. I monitored 91.25MHz (RX was set to 91.249MHz USB).
At 23:59:00JST(1459z), the red line NHK Tokyo 91.250 000 1MHz stopped. Next, at 23:59:29JST another 91.250 000 1MHz (presumed HBC Sapporo) stopped. At 23:59:56JST, a weak carrier on 91.249 865 1MHz stopped (ABS Akita Hoso / Kakunodate? 3W, 54km over high mountains QTF256). At 00:00:00JST(1500z) their licenses expired. Weak sidebands were by J1- Tohoku Hoso 91.239 990MHz in Sendai S9.

J1 ASO at 2359JST on 24 Jul 2011

You can see the program-off of 6 Tokyo analog TV stations at 1200JST (0300z) and the c/off of 6 Tokyo analog TV stations at 2359JST (1459z) on YouTube. From left to right on the upper side, J1 NHK General Tokyo, J4 NTV, J6 TBS, and lower side, J8 Fuji TV, J10 TV Asahi, J12 TV Tokyo. Note: Tokyo had also J3 NHK Edu. Tokyo, J14 Tokyo Metropolitan TV, J16 University on the Air.

In three prefectures severely damaged by the mega-earthquake and tsunami, Iwate, Miyagi and Fukushima, the ASO will be delayed to 31 Mar 2012.

I live in Iwate so I can use my local NHK (Japan Broadcasting Corporation, Japanese national public broadcasting organization) JOQG 531kHz and JOQG-TV 171.260 010MHz as frequency references for more several months.

Is JOQG 531kHz accurate?

I measured JOYR San-yo Hoso 1494.0000kHz. JOYR has 6 relay stations on the same frequency so their frequencies are synchronized within +/- 0.1Hz to reduce QSB.

YYMMDDJOYR(kHz)
1201131494.0001
1201171494.0000
1201181493.9999
1201191494.0000
1201201494.0000
1201211493.9999
1201221493.9999
1201231493.9999
1201251494.0001
1201271494.0000
1202011494.0000
1202021494.0000
1202051494.0001

FFT error is around 0.1Hz so I think JOQG is accurate.

GPS Arrived

I bought a GPS module with a 10kHz output Jupiter TU60 for 38 Euro (free P&P) from Hongkong. It arrived here on 23 FEB 2012.

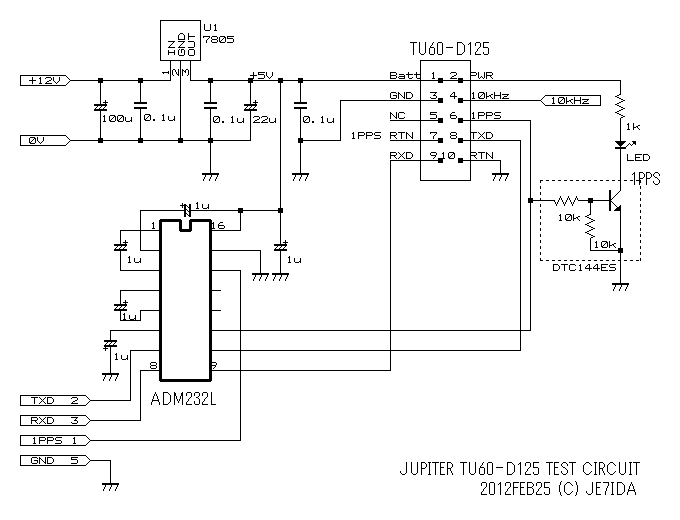

Test circuit

The 10kHz output is connected to the ground terminal of IC-706mkIIG via 1k ohm.

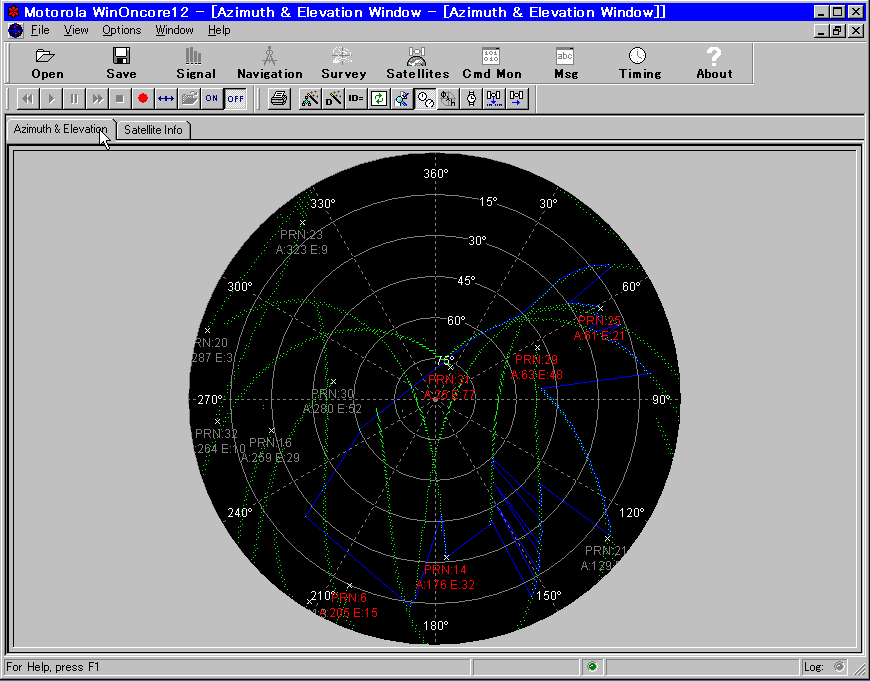

Test 1

Assuming that JOQG and JOQG-TV are accurate, a harmonic 200.000MHz of 10kHz output was measured as 199,999,999.9Hz (FFT error was +/-0.1Hz).

Test 2

I waited until the module was locked to 4 GPS satellites. The 50th harmonic of the 10kHz output was read as 500.001 4kHz on IC-706mkIIG, and JOQG was read as 531.0014kHz, so the true frequency of JOQG was 531.000 0kHz(+/-0.1Hz). Similarly, JOQG-TV was measured as 171.260 010 0MHz(+/-0.1Hz).

Links

My results are completely based on great works and suggestions by DXers including:

When I hear something new, I post about it on these sites below:

Other links:

Email

I found that my e-mail server at ictnet.ne.jp often rejects e-mails written in English as SPAMs. I stopped the SPAM filter in Sep 2012 so I think I can now receive all e-mails to me. If you sent me some e-mails before and you don't have my reply, will you please send your e-mails again.


Email to JE7IDA(c) JUL 31, 2014
